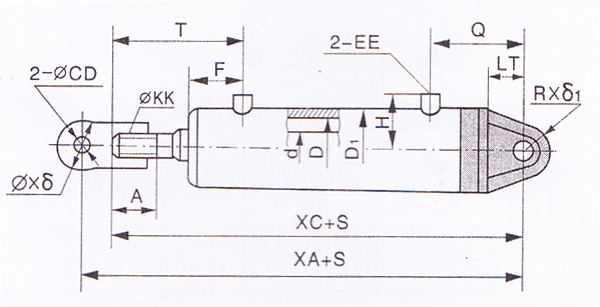

安裝外形圖
安裝外形尺寸
|
型號(hào)
|
缸徑D
|
桿徑d
|
D1
|
EE
|
ΦKK
|
A
|
ΦCD(H10)
|
Φ×δ(厚)
|
R×δ(厚)
|
XC
|
XA
|
F
|
H
|
Q
|
LT
|
T
|
|
DG-J40×SCE1L/E
|
40
|
22
|
60
|
Z3/8″
|
M20×1.5
|
29
|
16
|
46×37.5
|
20×22
|
200
|
226
|
43
|
45
|
59
|
27
|
88
|
|
DG-J50×SCE1L/E
|
50
|
28
|
70
|
Z3/8″
M18×1.5
|
M24×1.5
|
34
|
20
|
56×45
|
25×28
|
243
|
276
|
52
|
50
|
66
|
32
|
104
|
|
DG-J63×SCE1L/E
|
63
|
35
|
83
|
Z1/2″
M22×1.5
|
M30×1.5
|
36
|
32
|
71×60
|
35×40
|
274
|
317
|
67
|
58
|
79
|
40
|
114
|
|
DG-J80×SCE1L/E
|
80
|
45
|
102
|
Z1/2″
M22×1.5
|
M39×1.5
|
42
|
40
|
90×75
|
43×50
|
306
|
359
|
70
|
71
|
94
|
50
|
121
|
|
DG-J100×SCE1L/E
|
100
|
55
|
127
|
Z3/4″
M27×2
|
M48×1.5
|
62
|
50
|
112×95
|
53×63
|
369
|
427
|
81
|
84.5
|
111
|
60
|
154
|
|
DG-J110×SCE1L/E
|
110
|
63
|
140
|
Z3/4″
M27×2
|
M56×2
|
70
|
55
|
116×105
|
55×75
|
404
|
472
|
85
|
90
|
118
|
65
|
185
|
|
DG-J125×SCE1L/E
|
125
|
70
|
152
|
Z3/4″
M27×2
|
M64×2
|
70
|
63
|
134×118
|
62×80
|
421
|
496
|
90
|
100
|
136
|
75
|
166
|
|
DG-J140×SCE1L/E
|
140
|
80
|
168
|
Z1″
M33×2
|
M72×3
|
75
|
65
|
134×125
|
65×80
|
460
|
540
|
95
|
104
|
144
|
80
|
195
|
|
DG-J150×SCE1L/E
|
150
|
85
|
180
|
Z1″
M33×2
|
M80×3
|
80
|
70
|
170×135
|
75×80
|
481
|
566
|
101
|
115
|
169
|
81
|
185
|
|
DG-J160×SCE1L/E
|
160
|
90
|
194
|
Z1″
M33×2
|
M80×3
|
85
|
80
|
160×145
|
80×85
|
528
|
613
|
115
|
117
|
168
|
90
|
200
|
|
DG-J180×SCE1L/E
|
180
|
100
|
219
|
M42×2
|
M90×3
|
95
|
90
|
176×160
|
90×95
|
606
|
716
|
126
|
130
|
185
|
105
|
253
|
|
DG-J200×SCE1L/E
|
200
|
110
|
245
|
M42×2
|
M100×2
|
105
|
100
|
184×170
|
100×105
|
680
|
800
|
157
|
143
|
200
|
110
|
302
|
|
DG-J220×SCE1L/E
|
220
|
125
|
273
|
M42×2
|
M110×2
|
112
|
100
|
200×170
|
100×120
|
693
|
811
|
157
|
157
|
200
|
120
|
314
|
|
DG-J250×SCE1L/E
|
250
|
140
|
299
|
M42×2
|
M125×4
|
125
|
110
|
200×170
|
110×136
|
716
|
831
|
157
|
170
|
210
|
130
|
322
|
|
DG-J320×SCE1L/E
|
320
|
180
|
402
|
M48×2
|
M160×2
|
166
|
140
|
280×170
|
140×176
|
847
|
1017
|
200
|
225
|
264
|
160
|
406
|
|
